Exceeding expectations
Our products undergo rigorous testing and quality assurance measures to ensure they meet the highest industry standards. We are committed to continuous improvement and our products are always evolving to incorporate the latest advancements in technology and design.

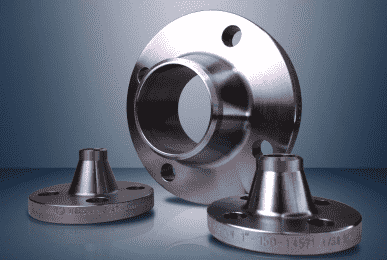

Weld Neck Flange
Welding Neck flanges are designed to be joined to a piping system by bun welding. The neck or hub transmits stresses to the pipe, reducing stress concentrations at the flange base. The gradual thickness transition from the hub base to the wall thickness at the bun weld provides critical flange reinforcement.

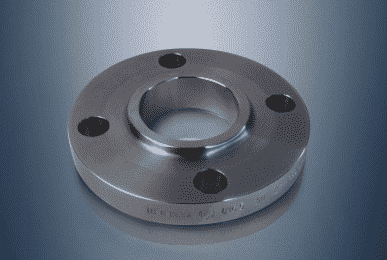

Slip-on Flange
A Slip-on pipe flange is slipped over the pipe and then welded both inside and outside to provide sufficient strength and prevent leakage. These flanges are ideal for lower pressure applications. It is used in preference to weld necks by many users because of its lower cost and the fact that less accuracy is required when cutting pipe to length.

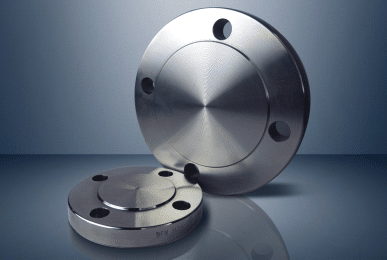

Blind Flange
A Blind flange is a round plate but no centre hole that has all of the relevant bolt holes, and because of this, it is used to close off the ends of piping systems and close off pressure vessel openings. It also permits easy access to vessels or piping systems for inspection purposes.

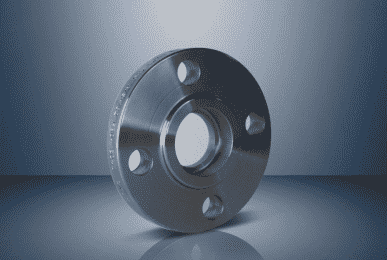

Socket Weld Flange
These flanges are attached by inserting the pipe into the socket end. It allows for a smooth bore and a better flow of the fluid or gas inside. Socket-weld pipe flanges are mainly used for smaller sizes of high-pressure pipes.

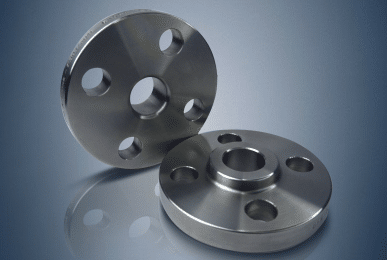

Lap Joint Flange
Lap Joint Flanges slide over the pipe and are most commonly used with stub end fittings. A pipe is typically welded to the stub end, and the lap joint pipe flange is free to rotate around the stub end. Lap Joint pipe flanges are often used for applications that require frequent dismantling. Threaded pipe flanges are often used for small diameter, high-pressure requirements.

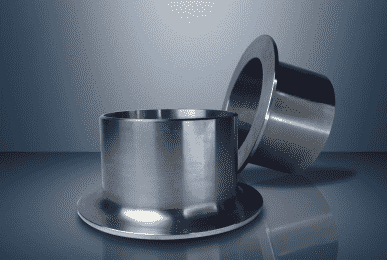

Stub End
Stub Ends are using with standard lap joint flanges slide over the pipe and are most commonly used with stub end fittings. These are often used for applications that require
